TI-45N
Ultrasonic Wall Thickness Gauge |
Measuring Range in Steel
0.040 - 8.00 inches
1.00 - 200.0 mm

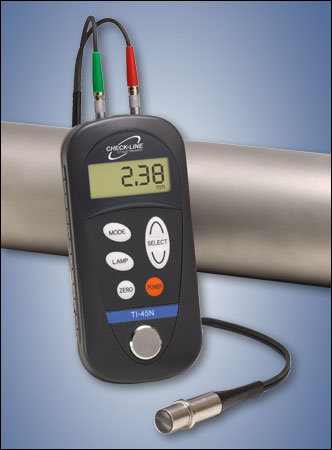

The new CHECK-LINE TI-45N Ultrasonic Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The attractive, ergonomic housing design is extremely compact, lightweight and rugged. It fits comfortably in the palm of your hand and incorporates a back light that illuminates the LCD in poorly lit areas. |
 Resolution of 0.001" (0.01mm) | | Extremely small & lightweight operates from a single AA battery | | Switch-selectable units - inches or mm | | Built-in calibration test plate |
| | Quick display update with last reading retained on the display | | Display symbols alert user to poor coupling and low battery conditions | | TI-45N-HD includes slip-on, ergonomic rubber sleeve for improved grip and additional physical protection |
|
TI-45N Ultrasonic Wall Thickness Gauge
|
TI-44N
Ultrasonic Wall Thickness Gauge |  |
Resolution of 0.001" (0.01mm) with Switch-selectable units of inches or mm | | Click image for more info | | |
|
NIST-Traceable Steel Test Block
3 Sizes Available |  |
Precision Machined and Finished Includes NIST-Traceable Report and Test Data Includes Wooden Storage Box | | Click image for more info | | |
|
Uncertified Steel Test Block
For Ultrasonic Gauges |  |
For convenient confirmation of thickness gauge calibration | | Click image for more info | | |
|
CF12
Coupling Fluid |  |
Used to create an ultrasonic coupling between the probe and material to be measured 12oz Bottle | | Click image for more info | | |
|
5Z10NDT-M
Spare / Replacement Probe for TI-40N |  |
5mhz, 10mm Probe 39" Cable with 2 LEMO Connectors | | Click image for more info | | |
|
CS-5Z10NDT
Centering Shell for CS-5Z10NDT Probe |  |
Centering Shell for TI-40N & TI-45N | | Click image for more info
|
| | | | The TI-45N is supplied as a complete kit with the gauge and wrist strap, probe and cable assembly, 2 oz. bottle of coupling fluid, battery and instruction manual -- all supplied in a fitted, hard plastic carrying. |
 |
 |
Minimum Radius
for Convex Surfaces |
1" (25.4 mm) |
| Minimum Radius
for Concave Surfaces |
3" (76.2 mm) |
 |
Minimum Headroom |
3" (76.2 mm) |
 |
Minimum Sample
Diameter |
0.5" (12.7 mm) |
 |
Minimum Substrate Thickness - F |
na |
| Minimum Substrate Thickness - NFe |
na |
|
Range in Steel
|
0.040 - 8.000" (1.0 - 200.0 mm)
|
|
Resolution
|
.001" (0.01 mm)
|
|
Display
|
4½ - digit LCD display, 0.39" (10mm) high with push button illumination
|
|
Velocity Range
|
3,250 - 39,000 ft/sec
(1,000 - 12,000 m/sec)
continuously adjustable
|
|
Probe
|
5 MHz, .39" (10 mm) diameter without Centering Shell
|
|
Cable
|
39" (1m) 2-wire, long cable with quick-disconnect connectors
|
|
Minimum Pipe Size
|
1" nominal (30mm) steel pipe
|
|
Temp. Limits
|
Ambient: 25 to 125° F (-5 to 50° C)
Material: -15 to 140° F (-10 to 60° C)
|
|
Calibration Plate
|
0.250" (6.35mm) steel plate, built into the front of the housing
|
|
Battery Type
|
1x AA battery
|
|
Battery Life
|
200 hours
|
|
Weight
|
Gauge: 7 ounces (200 g)
|
|
Size
|
5.2" x 2.7" x 1.1"
(131 x 68 x 29 mm)
|
|
Warranty
|
Gauge: 1 years
Probe: 90 days
|
|
Accessories Included
|
Fitted, hard-plastic carrying case, probe shell attachment, 2 oz. bottle of coupling fluid, 1 spare battery and operating instruction guide
|
|
|
|
